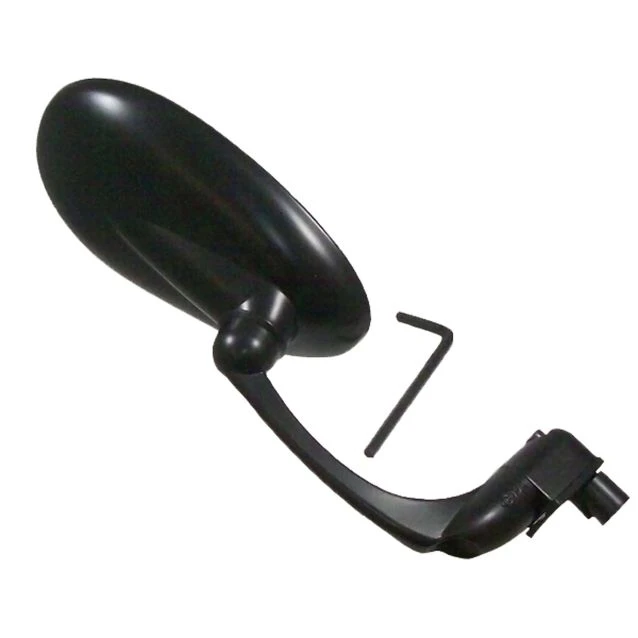

CIPA Heavy Duty Universal Bar End Mirror

FEATURES

• The Bar-End ATV Mirror features bar-end mounting that will work with most ATVs.
• Offers the ability to mount the mirror quickly and easily into the handlebar, while keeping the mirror out of the way, and free from interfering with hand movement.
• Insertion knob on The Bar-End ATV Mirror is 5/8 of an inch in diameter, and the mirror head will sit 3 ½ inches away from the handlebar.
• Overall length of the mirror is 10 inches.
• The mirror head was designed using a “tear-drop” shape measuring 6 ¼ inches long by 3 ¾ inches high (at its largest point).
• The viewing surface measures 5 ½ inches long by 3 inches high.

INSTALLATION

• Installation of the Bar-End ATV Mirror is easy.
• Start by simply sliding the insertion knob into the exposed handlebar.
• The mirror assembly then attaches by fastening it to the insertion knob using the supplied bolt, and turning until the mirror fits snugly into the handlebar.
• The Bar-End ATV Mirror comes with a vibration-free convex safety lens to provide both safety and wide angle viewing while on your ATV.
• The mirror head adjusts in all directions using a ball and socket mount between the mirror head and mirror arm.
• The arm can also be adjusted for optimal viewing using a Phillips head screwdriver (not included).
• The Bar-End ATV Mirror is completely universal and can be used on snowmobiles, jet skis, motor-cross bikes, 4 wheelers, or bicycles.
• Package includes 1 universal (LH or RH) mirror, 1 insertion knob, 1 washer, 1 hex bolt, and 1 3/16″ hex wrench.

Please note: All measurements are approximate.
